Intro To Macro: A simple Calculator

HELLO THERE!!!!
           How are you guys? I hope everyone is fine and happy always. This week I will continue my experimentation on the Excel Macro. I will introduce you guys on how to make a simple calculator using the Macro. The calculator will be able to add, subtract, multiply and divide. Before anything let's see what is needed for this experiment.
SOFTWARE:
1. Microsoft Excel

 Steps on how to open the developer tab and how to add Action X button is shown in the last week's post. Ok, now let's get straight to the point. First, add 4 Action X button in the Excel Spreadsheet.

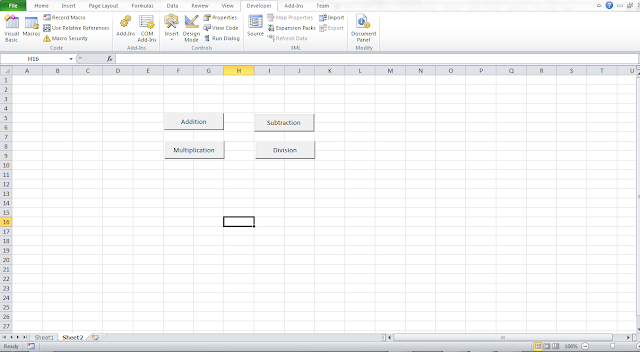

4 Action X button; namely add,subtract,multiply and divide

Next, double click on the addition button ( make sure you are in the design mode). A Microsoft  Visual Basic for Application pane will pop up. In here, we can code our buttons to perform what we want.

The Visual Basic window Pane.



Now that's done, let's code the add button. Ok, the add button in this experiment will add number from the A1 cell with the number in B1 cell and produce the output in C1 cell. Simply put, A1+B1 = C1. The same thing will be done with other operations. The code for the add button is shown below:


Range("C1").Value = Range("A1").Value + Range("B1").Value


Range C1.value means the value in C1 cell. The code above takes the value in cell A1 and adds it with the value in cell B1 and writes the output in cell C1. Let's repeat the same process with the other operation buttons. Change the add button to subtract, multiply and divide for each of the button. For reference, I will show the code for other buttons below:

SUBTRACT:
Range("C1").Value = Range("A1").Value - Range("B1").Value

MULTIPLY
Range("C1").Value = Range("A1").Value * Range("B1").Value

DIVIDE
Range("C1").Value = Range("A1").Value / Range("B1").Value

Now, that's done. What to do next is to save the code and exit out of design mode to run the macros. The demo video for this experiment is shown below:





That's all from me Guys. See you next week and Happy Tinkering!!!
